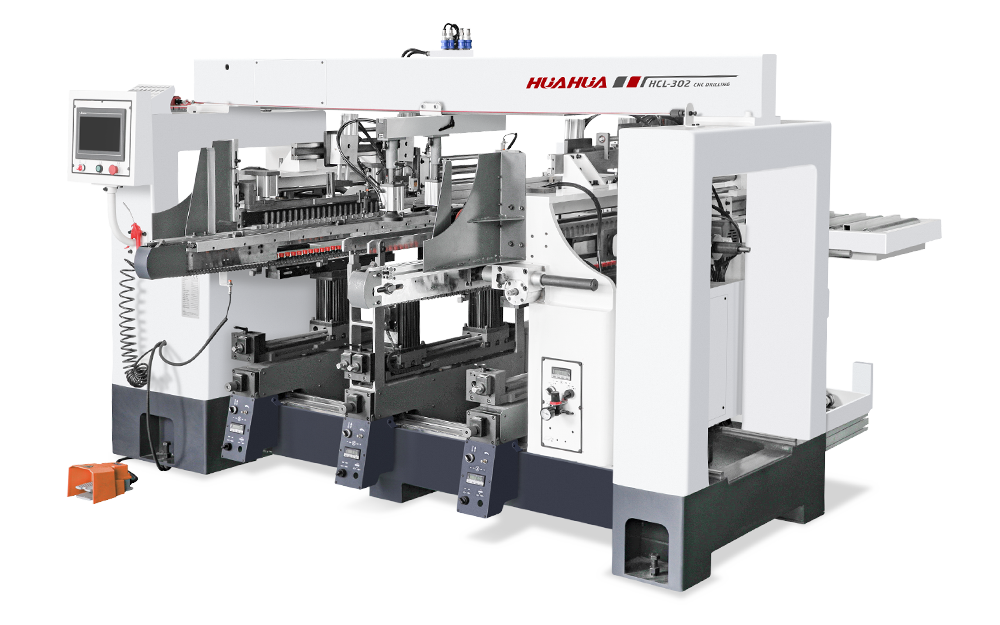

Multi-row Drilling Machine HCL-302

In Stock

HCL-302 1.automatic stacking 2.lifting unloading platform 3.precision drilling

HCL-302

1.automatic stacking
2.lifting unloading platform
3.precision drilling

Five Rows Multi Drilling Machine

Features

Five Rows Multi Drilling Machine

Automatic Stacking

Automatic stacking device,reducing manual stacking,improving production efficiency,saving time and salary.

multi hole drilling machine

Unloading of Lifting Platform

The roller lift table is auto unloading and save labour collect materials.one person can complete the whole production process and improve production efficiency.

best multi drilling machine

Precision Drilling

Precisely control drilling,improve processing accuracy, and ensure that each processed panel is controlled within 0.1mm.

Technical Specifications

Processing width(X aixs)250-1200mm
Processing length(Y aixs)50-600mm
Maximum processing thickness45mm
Max distance of vertical32mm
Max distance of horizontal32mm
Max drilling depth of horizontal40mm
Spindle speed2800r/min
Height of working table975.5mm
Working pressure0.6-0.8Mpa
Total power11.95kw
Overall size2700*2350*1770mm
Machine weight2200kg
